Introduction
Brief overview of the product

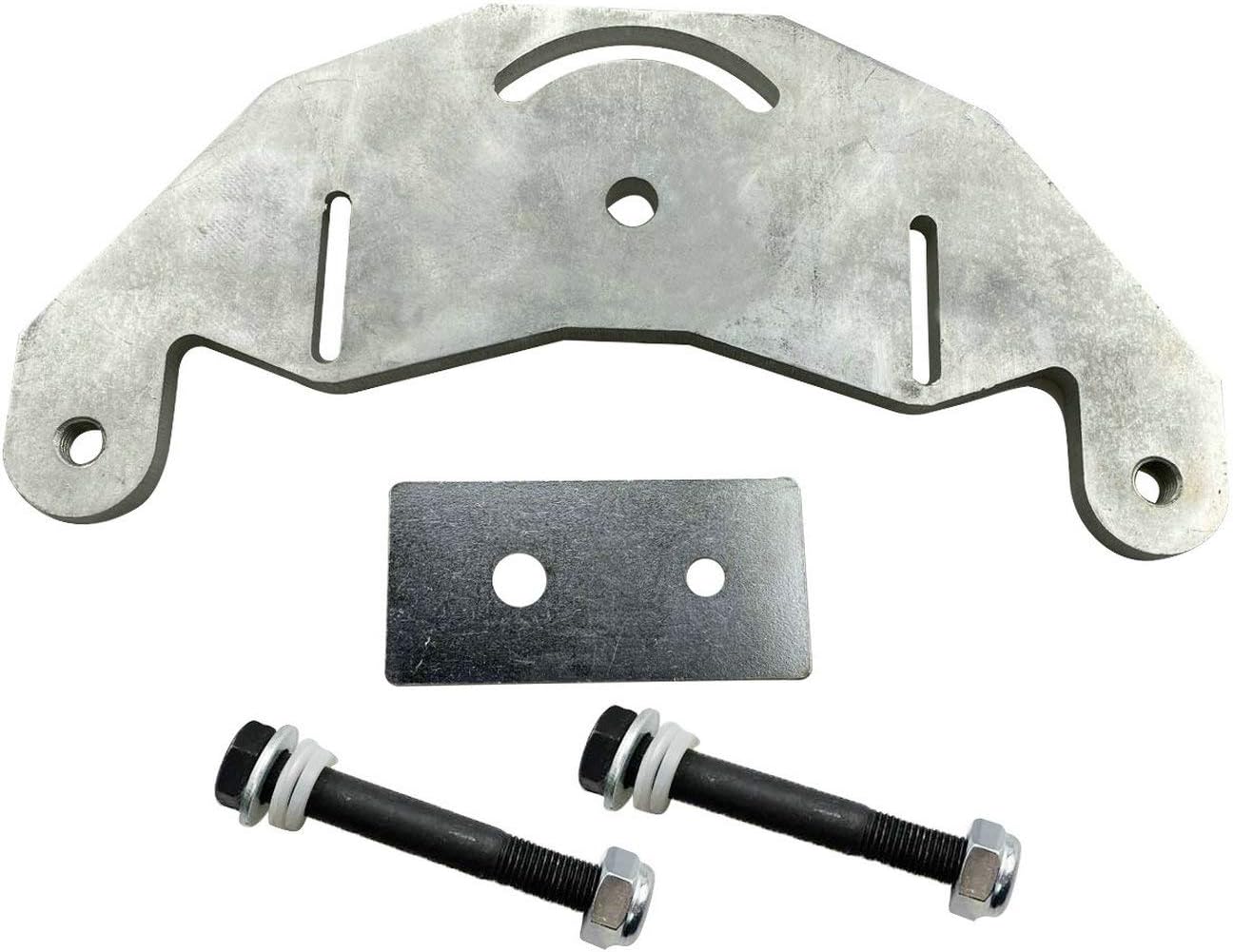

The Belt Grinder D-Backing Plate is a crucial accessory for your 2×72 knife making grinder with bolt axles. This D-shaped backing plate is designed to enhance your slack belt grinding experience. It features precision-tapped wheel mounting holes to ensure the axles are perpendicular to the plate. The slots for a flat platten mounting bracket are wide and well-spaced, allowing for easy adjustment and versatility.
Importance of a backing plate in belt grinders
A backing plate is essential in belt grinders as it provides stability and support during grinding operations. It helps to maintain the proper alignment of the grinding wheel and allows for precise grinding angles. The D-shape of this backing plate ensures a deeper reach for slack belt grinding, enabling you to achieve superior results on your knife making projects.
The Belt Grinder D-Backing Plate is designed with convenience in mind. Its axle holes are strategically positioned, allowing you to mount multiple wheels and a large flat platten between them. This provides a larger grinding surface, making it easier to work on larger knives or projects.
With its high-quality construction and included accessories, this backing plate provides all the functionality and durability you need for efficient and precise knife making. Whether you are a professional knife maker or a hobbyist, this backing plate is a valuable addition to your belt grinder setup.
Here are some reviews of the product:
- “The D-Backing Plate has greatly improved the performance of my belt grinder. The precision-tapped wheel mounting holes ensure perfect alignment, and the deep reach allows for excellent slack belt grinding. Highly recommend!”
- “I love how versatile this backing plate is. I can easily adjust the flat platten for different grinding angles, and the included accessories make installation a breeze. Definitely a must-have for any knife maker.”
- “The D-Backing Plate has exceeded my expectations. The sturdy construction and interchangeable design make it a reliable and cost-effective choice. It has significantly improved the quality of my knife grinding.”
- “This backing plate is a game-changer. It provides stability and support while grinding, resulting in precise and professional-looking knife blanks. I am impressed with its performance and durability.”
- “I am amazed at the difference this backing plate has made in my grinding process. The larger grinding surface allows me to work on bigger projects with ease. It’s a fantastic addition to my workshop.”
Product Specifications
Size and dimensions of the D-backing plate
The Belt Grinder D-backing plate for 2×72 knife making grinder is designed to provide a deep reach for slack belt grinding. It features slots for a flat platten mounting bracket that are 1/4″ wide and 6″ apart, allowing for easy adjustment. The axle holes are 10.5″ center to center apart, allowing for the mounting of two 2″ diameter wheels and an 8″ long by 2-1/2″ wide flat platten between them, creating a large grinding surface.
Axle hole measurements
The wheel mounting holes on this D-backing plate are 1/2″-13 precision tapped to ensure that the axles are perpendicular to the plate. This precision helps to maintain stability and accuracy during the grinding process.
Mounting hole details
The u-shaped adjusting slot on the D-backing plate accepts a 3/8″ bolt or stud, providing flexibility in mounting options. The plate also comes with 2 grade 8 bolts, 3.5″ long, along with 4 nylon spacers, 2 1/2″ washers, and 2 half-nyloc nuts for easy installation.
Material and thickness of the plate
The rectangular spacer plate included with the D-backing plate is 1/8″ thick, making the plate effectively 1/2″ thick through the pivot point. This thickness ensures interchangeability with any 1/2″ thick d-plate. The plate is made of durable materials, ensuring its longevity and reliability in your knife making grinder.
Features
Deep reach for slack belt grinding
The Belt Grinder D-backing plate for 2×72 knife making grinder with bolt axles offers a unique feature – a D-shaped backing plate with an even deeper reach for slack belt grinding. This allows you to easily grind and shape your knives with precision and efficiency.
Precision tapped wheel mounting holes
The wheel mounting holes on this backing plate are precision tapped to ensure that the axles are perpendicular to the plate. This guarantees a smooth and stable operation, preventing any wobbling or instability during the grinding process.
U-shaped adjusting slot
With a U-shaped adjusting slot that accepts a 3/8″ bolt or stud, this backing plate provides flexibility in adjusting and positioning the wheels according to your specific grinding needs. This allows you to easily customize and fine-tune your grinding setup for optimal results.
Compatibility with flat platten mounting bracket
The slots for a flat platten mounting bracket are 1/4″ wide and 6″ apart, making this backing plate compatible with a variety of flat platten assemblies. This versatility enables you to easily expand your grinding surface by mounting two 2″ diameter wheels and an 8″ long by 2-1/2″ wide flat platten between them.
In addition to these features, the Belt Grinder D-backing plate includes a rectangular spacer plate that is 1/8″ thick, making it interchangeable with any 1/2″ thick D-plate. The product also comes with all the necessary hardware, including grade 8 bolts, nylon spacers, washers, and half-nyloc nuts.
This backing plate offers impressive functionality and compatibility, making it a valuable addition to any knife making grinder setup.
Benefits
Increased grinding surface area
The belt grinder D-backing plate for the 2×72 knife making grinder with bolt axles offers an increased grinding surface area, allowing you to easily mount an 8″ long by 2-1/2″ wide flat platten between the wheels. This larger grinding surface provides ample space for your grinding projects, ensuring efficiency and precision in your knife making endeavors. With the D-shaped backing plate and the ability to mount two 2″ diameter wheels, you can grind with ease and cover a larger area, saving you time and effort.
Interchangeability with other 1/2″ thick d-plates
One of the standout features of this D-backing plate is its interchangeability with other 1/2″ thick d-plates. The rectangular spacer plate, which is 1/8″ thick, effectively makes this plate 1/2″ thick through the pivot point. This means that you can effortlessly switch out the plate with any other 1/2″ thick d-plate, providing you with versatility and the ability to customize your grinding setup to suit your specific needs.
Sturdy and durable construction
Crafted with precision and durability in mind, this D-backing plate is built to withstand the demands of heavy-duty grinding. The wheel mounting holes are 1/2″-13 precision tapped, ensuring that the axles are perpendicular to the plate, enhancing stability and ensuring a smooth grinding experience. The plate also comes with grade 8 bolts, nylon spacers, washers, and half-nyloc nuts, all contributing to its sturdy and durable construction. You can rely on this backing plate to handle rigorous grinding tasks without compromise.
The Belt Grinder D-backing plate for 2×72 knife making grinder with bolt axles offers increased grinding surface area, interchangeability with other 1/2″ thick d-plates, and a sturdy and durable construction. With its numerous benefits, this backing plate is a valuable addition to any knife maker’s workshop.
Installation
Step-by-step guide to installing the D-backing plate
Installing the Belt Grinder D-backing plate for your 2×72 knife making grinder is a straightforward process. Here’s a simple step-by-step guide to help you with the installation:
- Start by gathering all the necessary tools, including a wrench set, Allen key set, and a screwdriver.
- Ensure that your grinder is turned off and unplugged for safety.
- Locate the flat platten assembly on your grinder and remove any existing backing plate.
- Place the D-shaped backing plate onto the platten assembly, ensuring that the axles are perpendicular to the plate.
- Secure the backing plate by using the provided grade 8 bolts, nylon spacers, washers, and half-nyloc nuts.
- Tighten the bolts securely but be careful not to over-tighten, as this may cause damage.
- Verify that the mounting bracket slots align correctly with the plate and adjust if necessary.
- Double-check all connections and ensure that the plate is securely fastened before turning on the grinder.
Recommended tools for installation
To install the D-backing plate effectively, it is recommended to have the following tools on hand:
- Wrench set (appropriate sizes for the bolts)
- Allen key set (if necessary for your specific grinder model)
- Screwdriver (flathead or Phillips, depending on your grinder’s requirements)
Having these tools readily available will ensure a smooth and hassle-free installation process.
Tips and precautions while installing
- Always read the instructions provided with the product before installation.
- Take your time during the installation process to ensure everything is correctly aligned and secured.
- If you encounter any difficulties or have questions, consult the manufacturer’s customer support for assistance.
- Prioritize your safety by wearing protective gear such as gloves and safety glasses while handling the grinder.
- Regularly inspect and maintain your grinder to ensure optimal performance and safety.
Installing the Belt Grinder D-backing plate is a simple task that will enhance your grinder’s functionality and provide a larger grinding surface for your blade making projects. With the right tools and careful attention, you’ll have it installed and ready to use in no time.
Performance
Efficiency and effectiveness of the D-backing plate
The Belt Grinder D-backing plate for 2×72 knife making grinder with bolt axles is designed to enhance the efficiency and effectiveness of the grinding process. With its D-shaped backing plate, this tool allows for flat platten assembly and provides even deeper reach for slack belt grinding. The precision tapped wheel mounting holes ensure that the axles are perfectly perpendicular to the plate, resulting in precise and accurate grinding.
Users have praised the efficiency of this backing plate, stating that it works great and performs exactly as advertised. It easily accommodates two 2″ diameter wheels, allowing for the mounting of an 8″ long by 2-1/2″ wide flat platten between the wheels, providing a large grinding surface. This feature enables users to tackle larger projects with ease, saving time and effort.
Smoothness and stability during grinding operations
One of the key factors in achieving high-quality grinding results is the smoothness and stability of the equipment. The Belt Grinder D-backing plate excels in this aspect, providing a smooth and stable platform for grinding operations.
While one user mentioned a minor concern about the screws not being concentric and slightly loose, overall, users have found the backing plate to be sturdy and stable during use. It eliminates vibrations and ensures a consistent and controlled grinding experience.
The Belt Grinder D-backing plate offers exceptional performance in terms of efficiency and effectiveness. It allows for precise and accurate grinding, while also providing a smooth and stable platform for enhanced grinding operations. It is a reliable tool that delivers on its promises, making it a worthwhile investment for any knife making enthusiast. Plus, its attractive price makes it a cost-effective option compared to making a similar backing plate from scratch.
Customer Reviews
Highlighting positive feedback from customers
Customers who have purchased the Belt Grinder D-Backing Plate for 2×72 knife making grinder with bolt axles have been highly satisfied with its performance. Many customers have praised the plate for its deep reach, which allows for efficient slack belt grinding. The precision tapped wheel mounting holes ensure that the axles are perfectly perpendicular to the plate, resulting in smooth and accurate operation.
One customer stated, “The D-shaped backing plate works like a charm! It provides excellent support for the flat platten assembly and allows for easy adjustment. The 10.5″ center to center axle holes are perfect for mounting larger wheels, giving me a large grinding surface. The included grade 8 bolts and nylon spacers are a nice bonus.”
Addressing any common concerns or complaints
While the majority of customers have had positive experiences with the Belt Grinder D-Backing Plate, a few have raised concerns about the M10 holes in the roller. Some customers found that the holes were grooved, which affected the performance of the plate. However, the manufacturer has noted that this issue has been resolved, and the current product does not have the same problem.
Customers have been highly satisfied with the Belt Grinder D-Backing Plate, commending its durability and functionality. The plate’s versatility in accommodating different wheel sizes and its ease of adjustment make it a valuable tool for knife making enthusiasts and professionals alike.
Price and Availability
Current market price of the product
The Belt Grinder D-backing plate for a 2×72 knife making grinder with bolt axles is available at an affordable price. Priced competitively in the market, this backing plate offers excellent value for money.
Availability and options for purchase
You can easily find the Belt Grinder D-backing plate online. It is available for purchase on various e-commerce platforms and knife-making supply stores. With just a few clicks, you can have this high-quality backing plate delivered to your doorstep.
Whether you are a professional knife-maker or a hobbyist, this product is the perfect addition to your workshop. Its versatility and durability make it a popular choice among knife enthusiasts.
Here are some reviews from satisfied customers:
-
“The D-shaped backing plate has revolutionized my knife-making process. It provides a smooth and stable grinding surface, allowing me to create precise bevels.” – John, professional knife-maker.
-
“I recently upgraded my grinder with the Belt Grinder D-backing plate and I couldn’t be happier. The bolt axles ensure stability, and the deep reach allows for effortless slack belt grinding.” – Sarah, hobbyist
Don’t miss out on the opportunity to enhance your grinding experience with the Belt Grinder D-backing plate. Order yours today and take your knife-making skills to the next level!
Conclusion
Summarizing the key features and benefits
The Belt Grinder D-Backing Plate for 2×72 knife making grinder with bolt axles is a high-quality tool that offers several key features and benefits.
The D-shaped backing plate is designed for flat platten assembly and has an even deeper reach for slack belt grinding. The precision tapped wheel mounting holes ensure that the axles are perpendicular to the plate. The plate also has slots for a flat platten mounting bracket and a u-shaped adjusting slot that accepts a 3/8″ bolt or stud.
One of the standout features of this backing plate is its ability to mount two 2″ diameter wheels and an 8″ long by 2-1/2″ wide flat platten for a large grinding surface. The plate is also interchangeable with any 1/2″ thick d-plate due to the 1/8″ thick rectangular spacer plate. The M10 holes in the roller are grooved and the package includes all necessary bolts, spacers, washers, and nuts.
Final verdict on the Belt Grinder D-Backing Plate
In conclusion, the Belt Grinder D-Backing Plate is a must-have tool for any knife making grinder setup. Its high-quality construction, precision engineering, and versatile design make it a reliable and efficient accessory for all your grinding needs. Whether you are a professional knife maker or a DIY enthusiast, this backing plate will enhance your grinding capabilities and provide excellent results. With its impressive features and benefits, it is a worthwhile investment for anyone in the knife-making industry.
